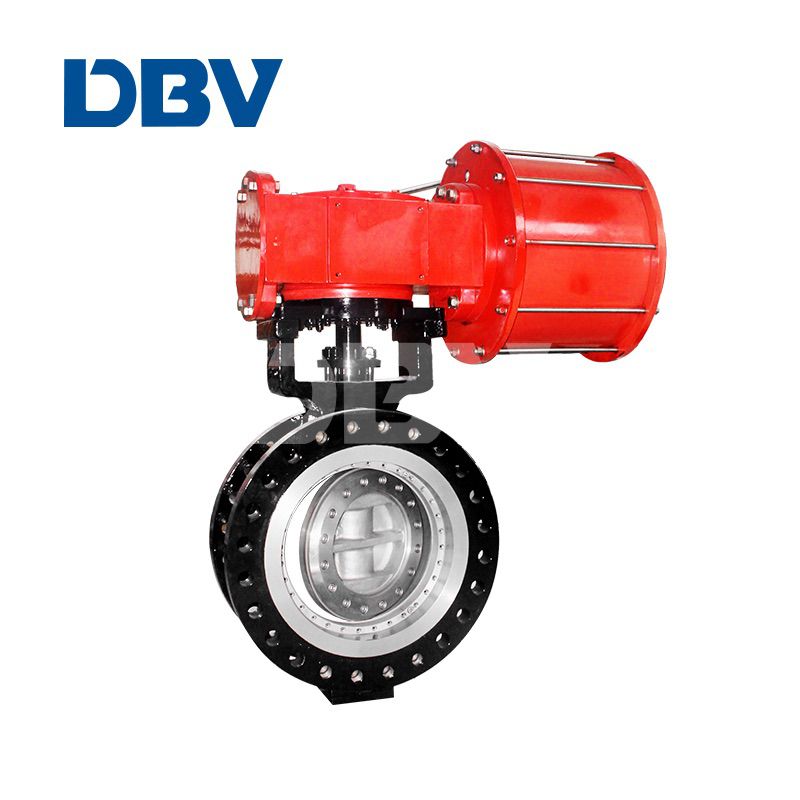

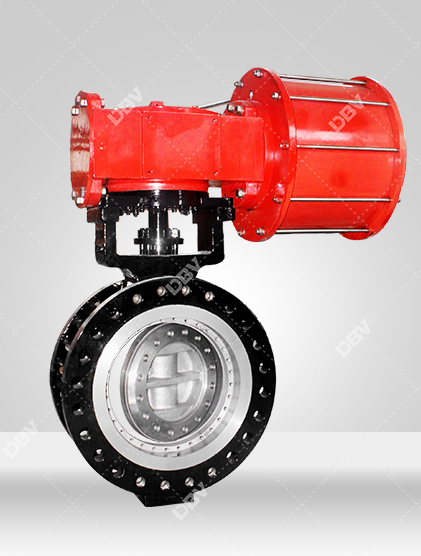

The Heavy-Duty Metal Seated Butterfly Valve with Pneumatic Actuation is designed for reliable and robust performance in extreme industrial environments.
Featuring a metal seated design, this valve ensures a tight and secure seal, capable of withstanding high temperatures and pressures.
The pneumatic actuation system provides swift and precise control, making it suitable for applications where operational efficiency and minimal maintenance are essential.
Ideal for heavy-duty applications, this valve is commonly used in industries such as oil and gas, petrochemicals, power generation, and industrial processing.

Metal Seated Design:
Provides superior sealing performance, ensuring zero leakage even under high-pressure and high-temperature conditions.

Pneumatic Actuation:
Enables quick and accurate valve operation, enhancing system efficiency and reducing downtime.

Heavy-Duty Construction:
Engineered to endure harsh industrial conditions, offering long-lasting durability and reliability.

Corrosion-Resistant Materials:
Constructed from high-grade materials that resist corrosion and wear, extending the valve's service life.

Versatile Applications:
Suitable for handling a wide range of fluids, including corrosive and abrasive media.

Low Maintenance:
Designed for easy maintenance, reducing overall operational costs and downtime.

Body:
Carbon Steel, Stainless Steel, or Alloy Steel

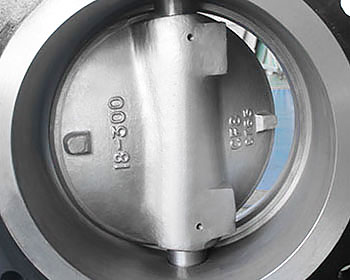

Disc:
Hardened Stainless Steel or Alloy Steel for enhanced durability

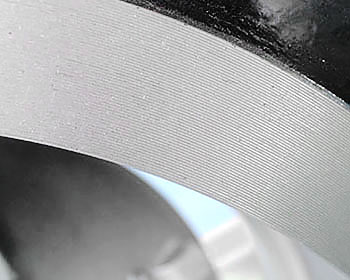

Seat:
Metal-to-Metal seating for high-temperature and high-pressure applications

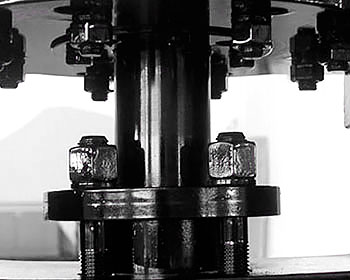

Stem:
Stainless Steel (17-4PH or 316) for superior strength and corrosion resistance

Seals:
Graphite or PTFE based on application requirements

Nominal Diameter (DN):
50mm to 1200mm

Pressure Rating (PN):
10 Bar to 40 Bar

End Connections:
Flanged or Lugged according to ANSI, EN, or JIS standards

Face-to-Face Dimension:
According to API 609 or EN 558

Actuator Options:
Pneumatic actuator with positioner, manual override, and fail-safe options

Design and Manufacturing:
API 609, ASME B16.34

Testing and Inspection:
API 598, ISO 5208

End Connection Standards:
ANSI B16.5, EN 1092-1, JIS B2220

Actuator Standards:
IEC 60034, IEC 60529

The Heavy-Duty Metal Seated Butterfly Valve with Pneumatic Actuation is ideal for use in:

Oil and Gas Industry:
Provides reliable flow control in pipelines, refineries, and offshore platforms.

Petrochemical Plants:
Handles corrosive and abrasive fluids with precision in demanding environments.

Power Generation:
Manages high-temperature steam and other fluids in power plants and industrial boilers.

Industrial Processing:
Ensures durable and efficient control of challenging media in manufacturing and processing facilities.

Experience superior durability with our Heavy-Duty Metal Seated Butterfly Valve with Pneumatic Actuation.

Designed for the toughest industrial environments, this valve offers exceptional wear resistance and reliability, making it ideal for high-pressure and high-temperature applications.

The metal-seated design ensures a tight seal and extended service life, even in the most demanding conditions.

Equipped with a pneumatic actuator, it provides fast, precise control, enhancing operational efficiency and reducing downtime.

Choose our heavy-duty butterfly valve for robust performance and unmatched reliability in your industrial processes.
