Globe Valve class 300

  • Product description:

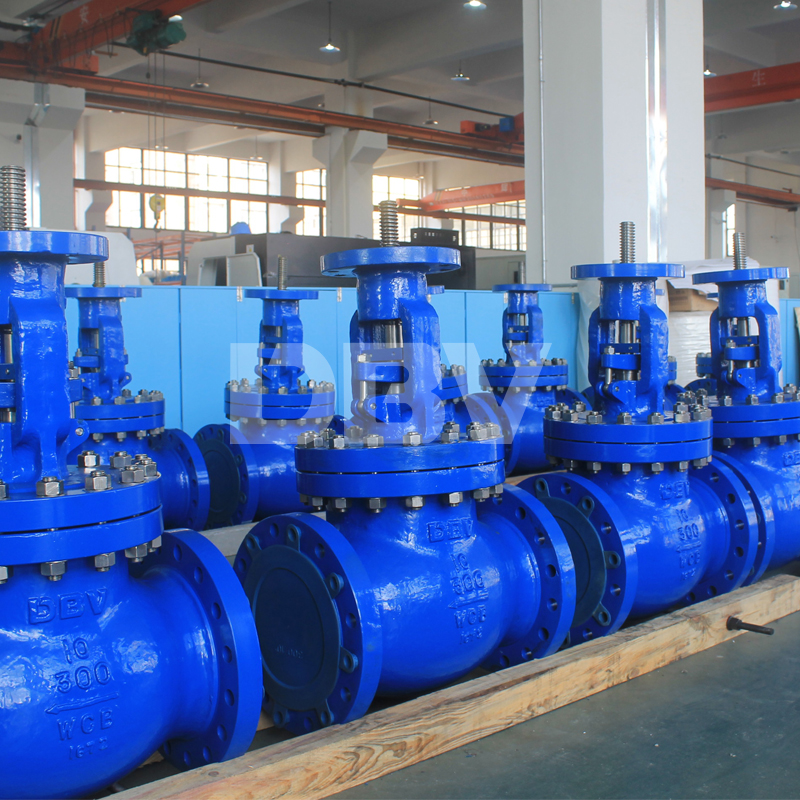

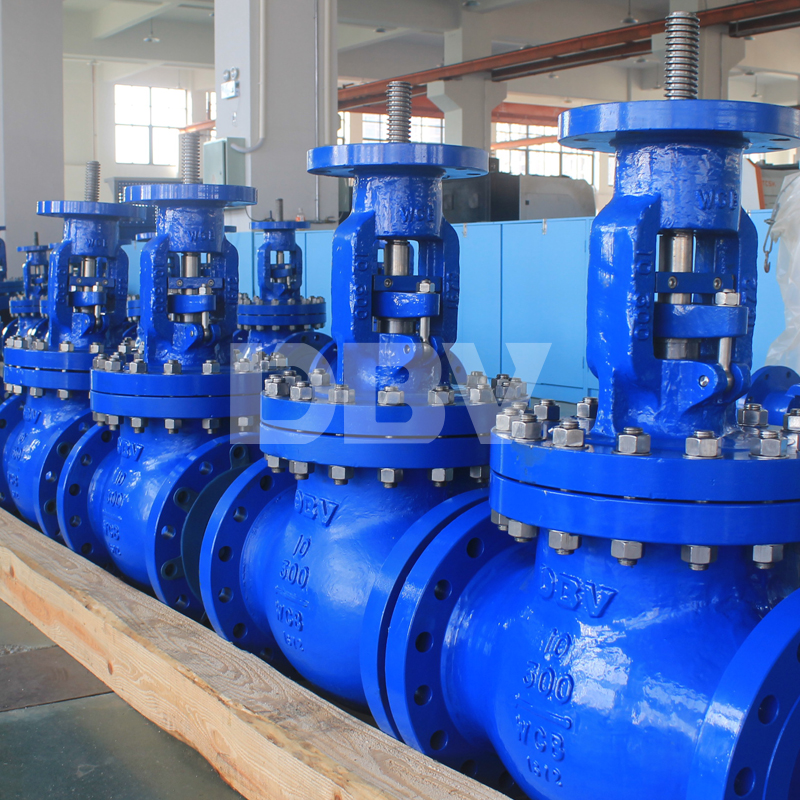

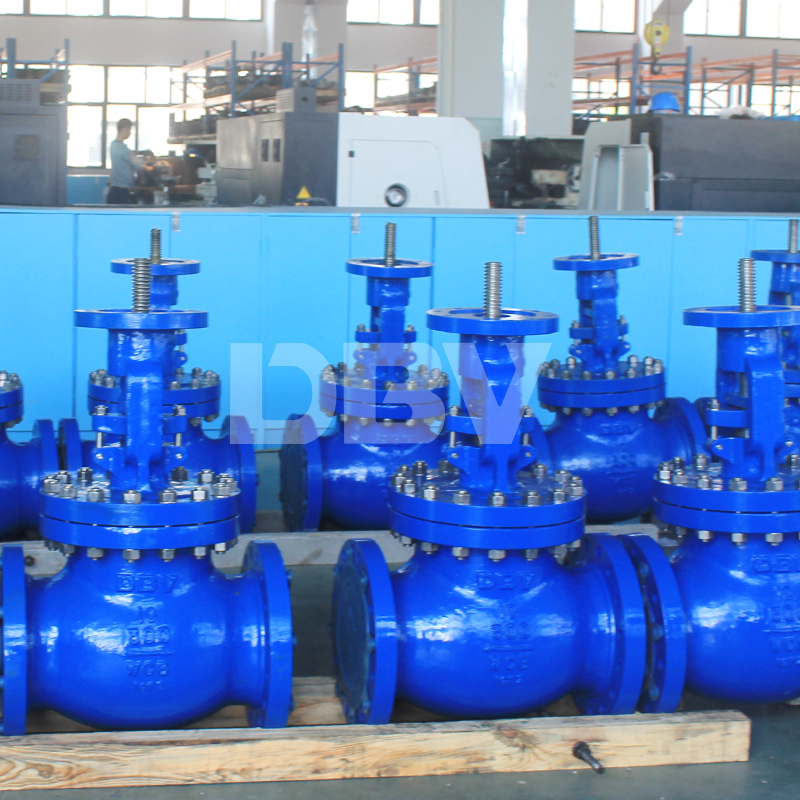

    Globe valves 10" Class 300 with actuator of Bernard brand shipped to Thailand power station for city water.Coating:Fusion Bonded Epoxy Coating(non-Coal Tar) to AWWA C210 with thickness not less than 200 microns

Similar items

read more

  • Details
  • Description
  • Download

Valve Details

Type

J41W

Size

2"-24"

Pressure Range

Class 150∽Class 1500

Working Temp

≤425°

Material

Carbon steel,Stainless steel,Alloy steel,chrome-molybdenum steel,Bronze,Inconel 625,Monel K400/Monel K500 etc.

Medium

Water Steam Oil,Sea water

Operation

Manual Pneumatic Electric

Applicable standards

Steel globe valves, BS1873

Steel valves, ASME B16.34

Face to face, ASME B16.10

End flanges, ASME B16.5

Butt welding ends, ASME B16.25

Inspection and test, API 598

Design Features

Straight patteren body design

OS&Y, Outside screw and yoke

BB, Bolted bonnet

Yoke integral with bonnet

Rising stem and handwheel

Renewable seat ring

Loose disc,choice of plug or ball

Horizontal servece

Handwheel, & Gear box operator

NO

ASTM Material

Part Name

Carbon steel

11/4 Cr-11/2 Mo

Low-term. Steel

Stainless steel

1

Body

A216-WCB

A217-WC6

A352-LCB

ASTM A351 CF8M

2

Bonnet

A216-WCB

A217-WC6

A352-LCB

ASTM A351 CF8M

3

Disc

A216-WCB+13Cr

A217-WC6+HF

A352-LCB+13Cr

A351-CF8M+STL

4

Stem

A182-F6a

CR-MO-V

A182-F6a

A182-F316

5

Seat Ring

A105+13Cr

A182 F11+HF

A350 LF2+13Cr

A182-F316+STL

6

Stem Back Seat

A276-410

A276-410

A276-410

A182-F316

7

Bonnet Gasket

Spiral Wound(Graphite+304/316)

8

Bonnet Stud

A193-B7

A193-B16

A320-L7

A193-B8M

9

Bonnet Stud Nut

A194-2H

A194-7

A194-4

A194-8M

10

Packing

Graphite

11

Gland

A276-420

A276 420

A276-420

Stainless steel

12

Gland Flange

A216 WCB

A217-WC6

A352-LCB

ASTM A351 CF8M

13

Eyebolt Pin

Carbon steel

A276 420

Carbon steel

Stainless steel

14

Eyebolt

Carbon steel

A193-B7

Carbon steel

A193-B8M

15

Eyebolt Nut

Carbon steel

A194-2H

Carbon steel

A194-8M

16

Yoke sleeve

Bronze Alloy

17

Handwheel

Malleable iron

Notes:1) Ductile Ni-Resist optional. 2) Wedge and seat ring may either be solid facing material or a base material equal or better than the body/bonnet material with facing as shown.
