Valve Details
|
▤ Type |
H44H/Y |
|||||
|
▤ Size |
2"-48" |
|||||
|
▤ Pressure Range |
Class 150∽Class 1500 |
|||||
|
▤ Working Temp |
≤425° |
|||||
|
▤ Material |
Carbon steel,Stainless steel,Alloy steel,special material,chromium molybdenum steel,etc. |
|||||
|
▤ Medium |
Water,Oil,Gas etc. |
|||||
|
▤ Operation |
Manual Pneumatic Electric |
|||||
|
▤ Applicable standards |
Steel Check valves, API 6D/BS1868 Steel gate valves, ISO 14313 Steel valves, ASME B16.34 Face to face, ASME B16.10 End flanges, ASME B16.5 Butt welding ends, ASME B16.25 Inspection and test, API 598 |
|||||
|
▤ Design Features |
BB, Bolted bonnet cap Swing type,Anti-rotation disc Renewable seat rings Non-penetrate disc shaft Horizontal or vertical service Flanged or Butt welding ends |
|||||
|
|
||||||
|
NO |

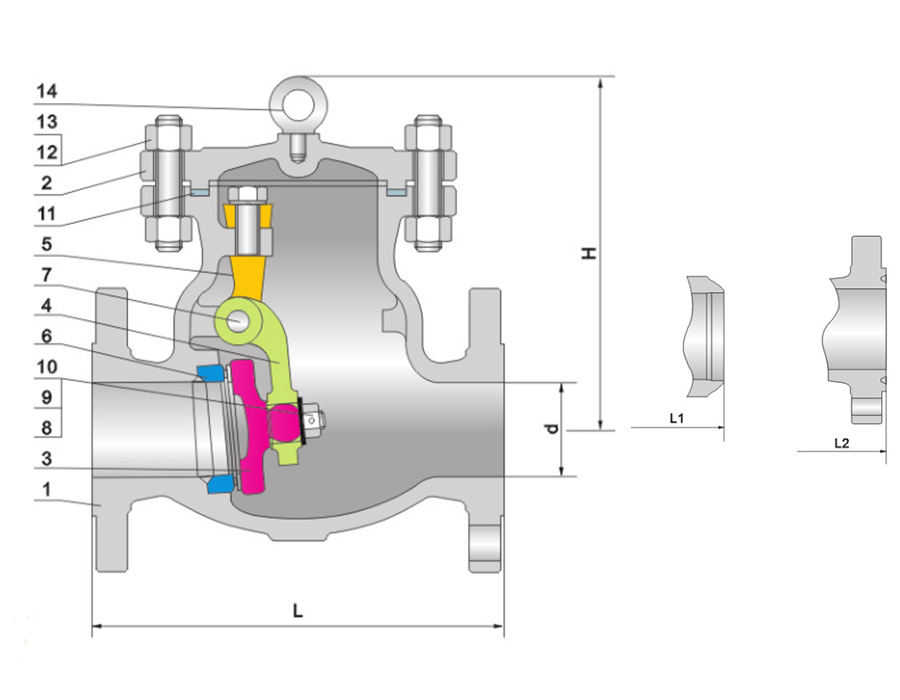

▤ ASTM Material |
|||||
|
Part Name |
Carbon steel |
11/4 Cr-11/2 Mo |
Low-term. Steel |
Stainless steel |
||
|
1 |
Body |
A216-WCB |
A217-WC6 |
A352-LCB |
ASTM A351 CF8M |
|
|
2 |
Bonnet Cap |
A216-WCB |
A217-WC6 |
A352-LCB |
ASTM A351 CF8M |
|
|
3 |
Disc |
A216-WCB+13Cr |
A217-WC6+HF |
A352-LCB+13Cr |
A351-CF8M+STL |
|
|
4 |
Hinge |
A216-WCB | A217-WC6 | A352-LCB | A182-F316 | |
|
5 |
Support |
A216-WCB | A217-WC6 | A352-LCB | A182-F316+13Cr | |
|
6 |
Seat Ring |
A105+13Cr | A182-F11+HF | A276-410 | A182-F316 | |
|
7 |
Hinge Pin |
A276-420 |
A276-304 |
A350-LF2+13Cr |
|
|
|
8 |
Disc Washer |
Carbon steel | A276-304 | Carbon steel | Stainless steel | |
|
9 |
Disc Nut |
Carbon steel | A194-7 | Carbon steel | Stainless steel | |
|
10 |
Disc Nut Pin |
Carbon steel |
A276-420 |
Carbon steel |
Stainless steel |
|
|
11 |
Bonnet Gasket |
Spiral Wound(Graphite+304/316) | ||||
|
12 |
Bonnet Stud |
A193-B7 | A193-B16 | A320-L7 | A193-B8M | |
|
13 |
Bonnet Stud Nut |
A194-2H | A194-7 | A194-4 | A194-8M | |
|
14 |
Eyeblot |
Carbon steel/Stainless steel | ||||
▤ Notes：1) Ductile Ni-Resist optional. 2) Wedge and seat ring may either be solid facing material or a base material equal or better than the body/bonnet material with facing as shown.
