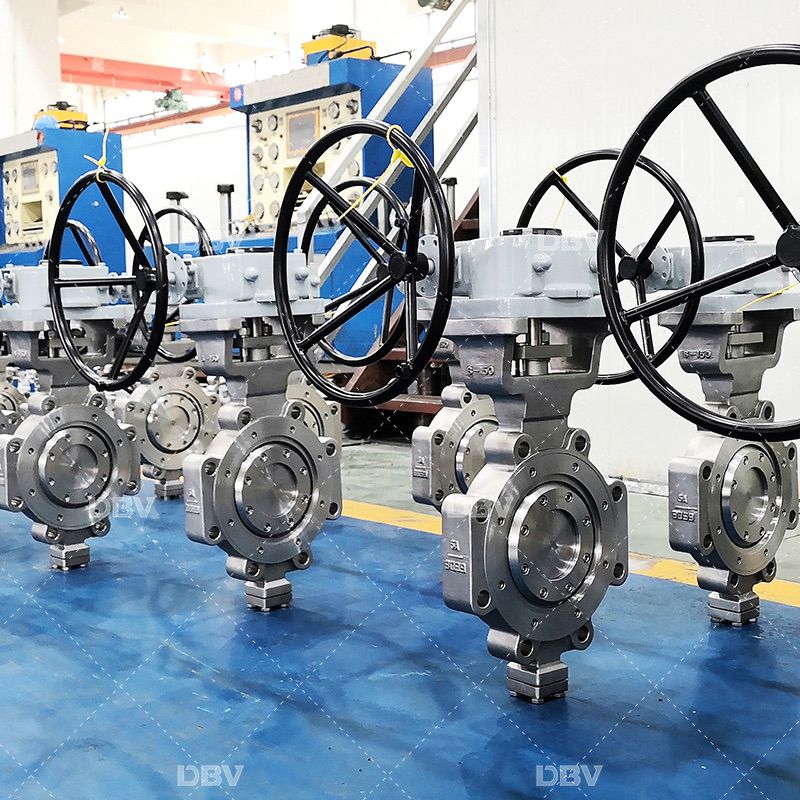

  • Special Material butterfly valve

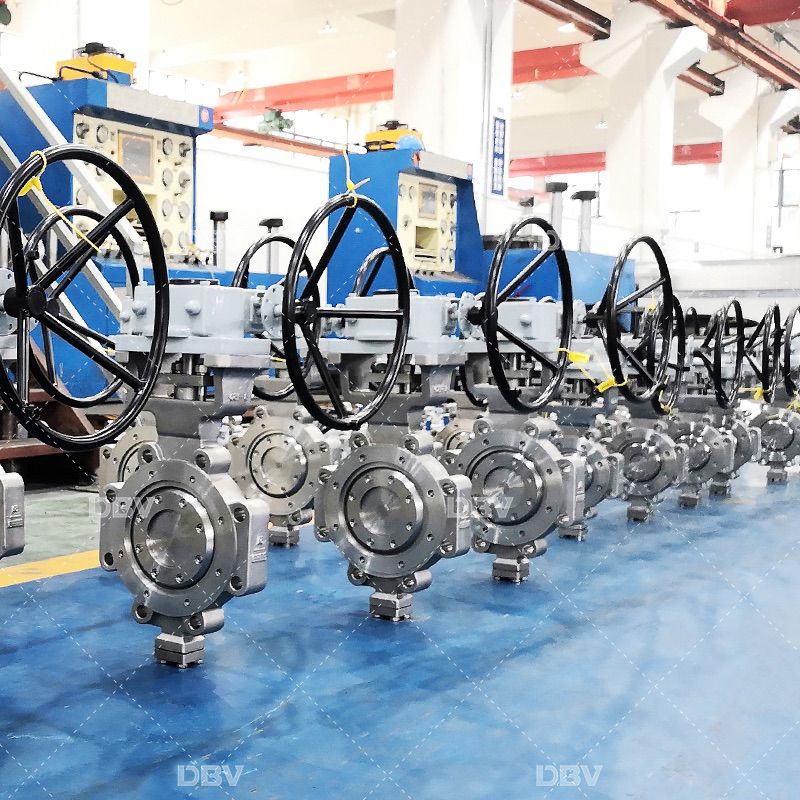

  • Metal to Metal Renewable Seat Butterfly Valve

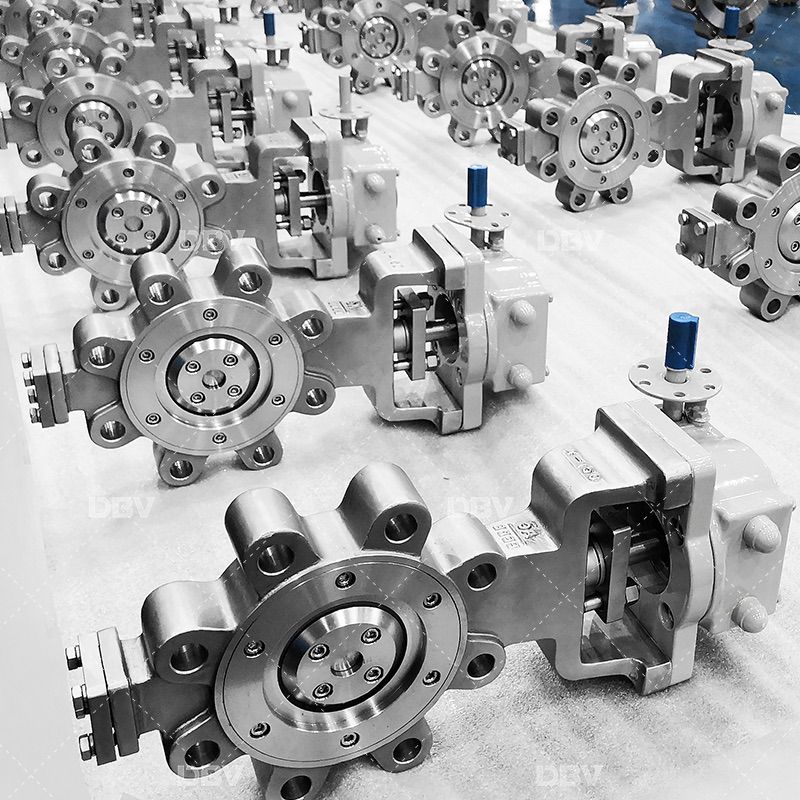

  • Lug Type Triple Eccentric Butterfly Valve Manufacturer

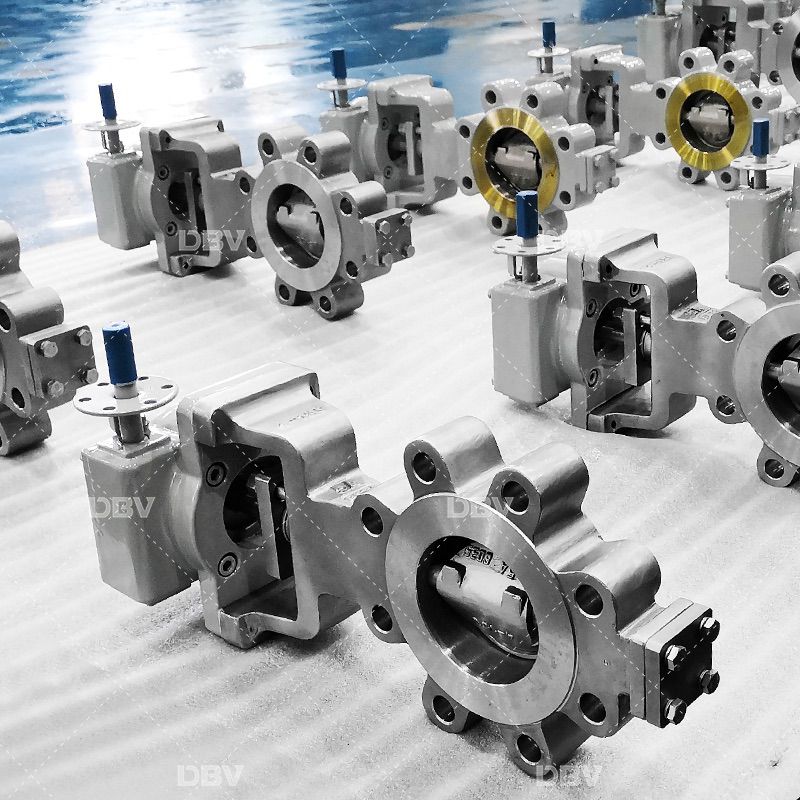

  • Lug Type Butterfly Valve
向上
向下

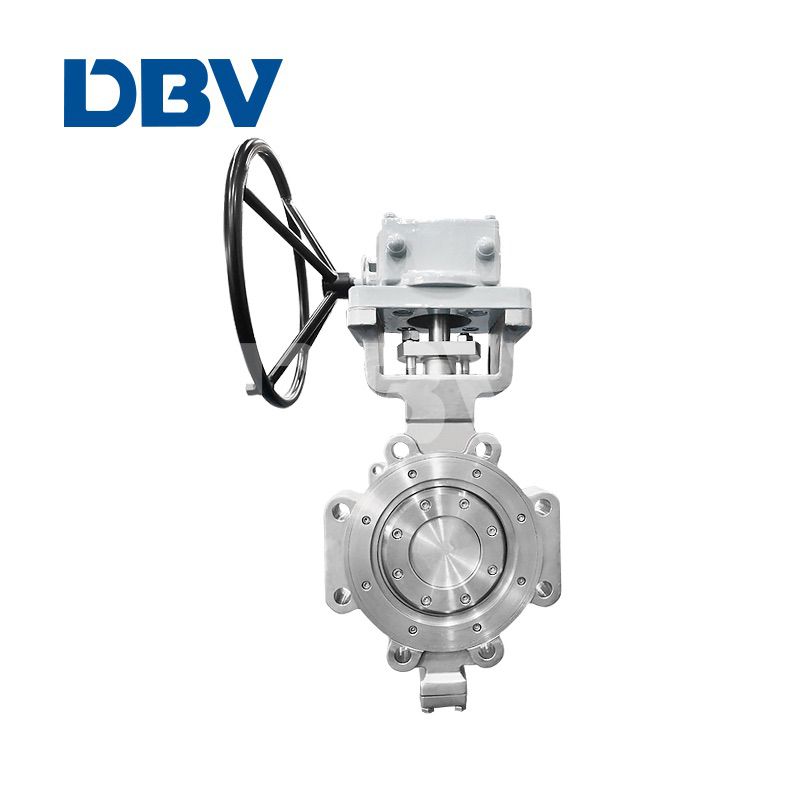

Lug type metal to metal renewable seat butterfly valve with special material 5A

  • Product description:

    Lug type metal to metal renewable seat butterfly valve Material: Body:5A Disc: F53, Seat:F53+STL: Nominal Diameter:4" & 6" Nominal Pressure:Class 150 End Connection: Lug Operation:Worm Gear

Similar items

read more

  • Details
  • Description
  • Download

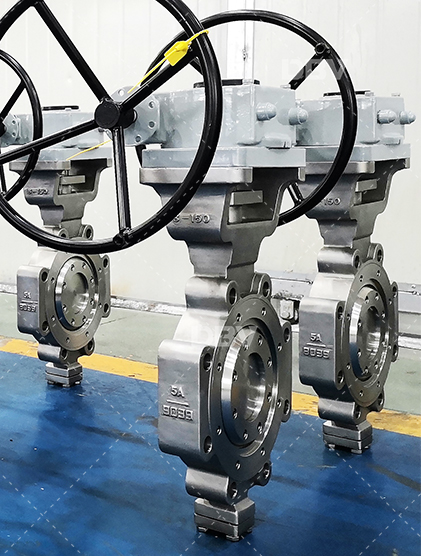

Lug type metal to metal renewable seat butterfly valve with special material 5A

Valve manufacturer description

Triple Eccentric Butterfly Valve

Name:

Wholly Metal to Metal  Triple Offset Butterfly Valve with Gear Box

Material:

Body:5A; Disc: F53, Seat: F53+STL

Nominal Pressure:

CL150

Nominal Diameter:

4"&6"

End Connection:

Lug

Structure:

Triple Eccentricity

Operation:

Worm gear

Valve type:

Industrial Valve

Working Temp.:

-29~+315

Design Standard:

API 609

Test / Inspection:

API 598/ISO 5208

Face To Face:

API 609

    PSWe also can do according to customer's requirements.

Fully Metal to Metal Valve Details

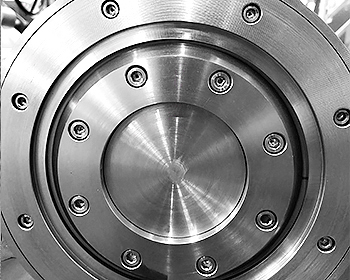

Clapper



Clapper


DBV have the best design for the metal to metal renewable seat

 butterfly valve with the clapper,If something problem with the seat,

we don't need change the whole valves,we can just change the seat.

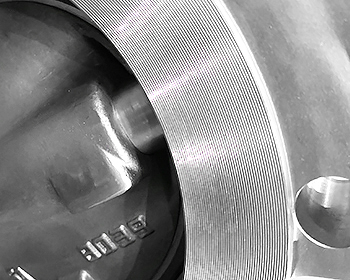

waterline





Flange face finish


Our waterline processing is very precise

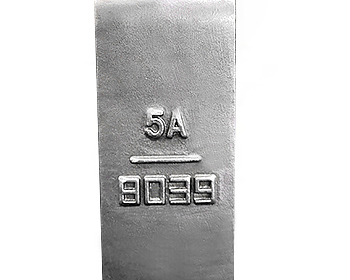

special material



Marking



Every valve in DBV with clear and beautiful marking on the

valve body,we usually do as our customers requirement







Why-dbv valve manufacturer

  Triple Eccentricity Design Features

 TripleEccentricityThe stem is offset on both the X (1)and Y (2) axis of the valve's

center line. This produces a cam一like motion. The third offset (3)

consists of an inclined conical  profile machined into  the  valve

sealing  surface. This allows rotary engagement and disengagement

of   the   seat   and   seal   ring without interference.  All  rubbing

between  seat  and seal ring is thereby eliminated. Once the seat

and seal ring are  fully  engaged  torque  is applied in order to

create a bi一directional, zero leakage,  metal-to一metal seal. For

this reason, triple offset valves are often defined as "torque" seated

rather than”position” seated as in the case of resilient or high performance products.


  Metal to Metal Design

 Butterfly Valve-5


  Product Comparison


  Yoke Design

 Metal Butterfly Valve-1


  Seat & Seal Ring Design

MetalButterflyValve2


  Factory Direct Sales

DBV Butterfly Valve

Quality, transportation, after-sales

FQ-dbv valve manufacturer

  Q1. Are you a factory or trading company?

  A: We are a factory specialized in manufacturing valves 20 years. We both have factory in Wenzhou and Shanghai.

  Q2. Can I have a sample order for valve?

  A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

  Q3.Do you have any MOQ limit for valve order?

  A: Low MOQ, 1pc for sample checking is available

  Q4. How do you ship the goods?

  A: We usually ship by sea, by air, by courier, etc.

  Q5. How to check the process of the order?

  A: You can check your order on our website after we provide you account and password.

  Q6: Do you offer guarantee for the products?

  A: Yes, we offer 2 years warranty to our products and we could repair freely for lifelong time.

  Q7: Can you put our Logo on the valves?

  A:Yes, we can totally produce products according to your special request, even manufacture them base on your drawing.

  Q8: How can I check your factory situation while it's difficult for me to come to China?

  AWe have photos and videos on our website, youtube and facebook, It shows every step of our manufacturing.
