Self Actuated Regulating Valves

Self Actuated Regulating Valves

Model NO.: GAZZYP / GAZZCP/ GAZZVP
Type: Self-Operated
Actuator: Self-Actuated
Medium: Coal Gas, Air, Sealed Oil., etc
Application: Industry
Specification: CE, SGS, GMP
HS Code: 8481804090

Material: C.S/S.S 304
Category: Control Valve
Connecting Type: Flange
Usage: Flow Control
Trademark: DBV, OEM
Origin: Wenzhou, Zhejiang, China

Factory overview

Self Actuated Regulating Valves

1. Self Operated Pressure regulating Valve Introduction

GAZZC, GAZZV series self operated difference (little) Pressure Control Regulating valve Can be used in nominal pressure PN0.1 , PN10. The difference (little ) presses the regulation of segmenting. From 50mm.WC to 0.1MPa. self operated type difference (little ) Regulating valve of the pressure The use is very extensive, can be used in industry's combustion furnace system, control two kinds of supplies , such as coal gas , air discharge matching , burn in order to reach the ideal. Used in the sealed oil system of the hydrogen-cooled generating set , it is bad to control the pressure among the sealed oil and hydrogen, so as to ensure and seal reliably. Act as Difference presses the valve End not low-voltage the coherent Press the valve a little (Difference presses the valve to shoulder and press, the end is pressed, strength is zero).

2. Self Operated Pressure Control Regulating valve Characteristic

2.1 Do not need to stop producing and can go on adjustment of the establishing value;
2.2 There is no packing , exist not gritting at being have , not last activity valve stem,on seal more reliable
2.3 The sensitive element of executive body is extremely sensitive , the pinpoint pressure will be detected out while changing
2.4 The valve body is Stone's form , therefore K, B type body of a kind of valve very in common use

3. Regulating valve of the pressure Main technical parameter and performance index ( Form one)

Specified journey (mm)		20	25	32	40	50	65	80	100
Nominal pressure PN ( MPa) Difference presses the range of regulating ( KPa)	GAZZCP/GAZZVP	8	11	20	32	50	80	100	160
	GAZZCN					53	83
Specified journey (mm)		6	8		10		15		20
Nominal pressure PN (MPa)		0.10 1.0
Difference presses the range of regulating (KPa)		0.5~5.5 5~10 9~14 13~19 18~24 22~28 26~33 31~38 36~44 42~51 49~58 56~66 64~78 76~90 88~100
Medium temperature (degrees Centigrade)		≤ 80
Regulate the precision (%)		≤ 10
Allow the letting out amount (L/H )	GAZZCP/GAZZVP	The specified capacity of 10-4* valves (IV grade)
	GAZZCN	The specified capacity of 5* 10-3* valves (II grade)

4. Dimension of the Self Operated Control Valve : mm

Nominal and open directly (DN)		20	25	32	40	50	65	80	100
A		308	394	308	394	308	394	394	394
H	GAZZCP/GAZZVP	376	465	365	445	445	490	490	510
H	GAZZCN					536	536	570	590
L	GAZZCP/GAZZVP	150	160	180	20	230	290	310	350
L	GAZZCN					222	222	310	350
Weight (kg)		12	13	15	17	20	28	38	43
Lead and press and is in charge of the whorl to connect		M16* 1.5

Third , flange inch to the limit (form three)

Nominal and open directly (DN)		20	25	32	40	50	65	80	100
D	PN01PN10	105	115	140	150	165	185	200	220
D1	PN01	PN10	75	85	100	125	145	160	180
b	PN01 PN10	16		18		20		22
N- Φ	PN01 PN10	4-14		4-18				8-18
*fl D2**	PN01 PN10	*2 56**	*3 56**	*3 76**	*3 84**	*3 99**	*3 118**	*3 132**	*3 156**

If you are interested in our products, please click on the following PDF file name to open the Ctrl+S or the right mouse button to save your equipment

内容附件: High Pressure Control Valve -Catalogue

products

Self Actuated Regulating Valves

Product description:

Similar items

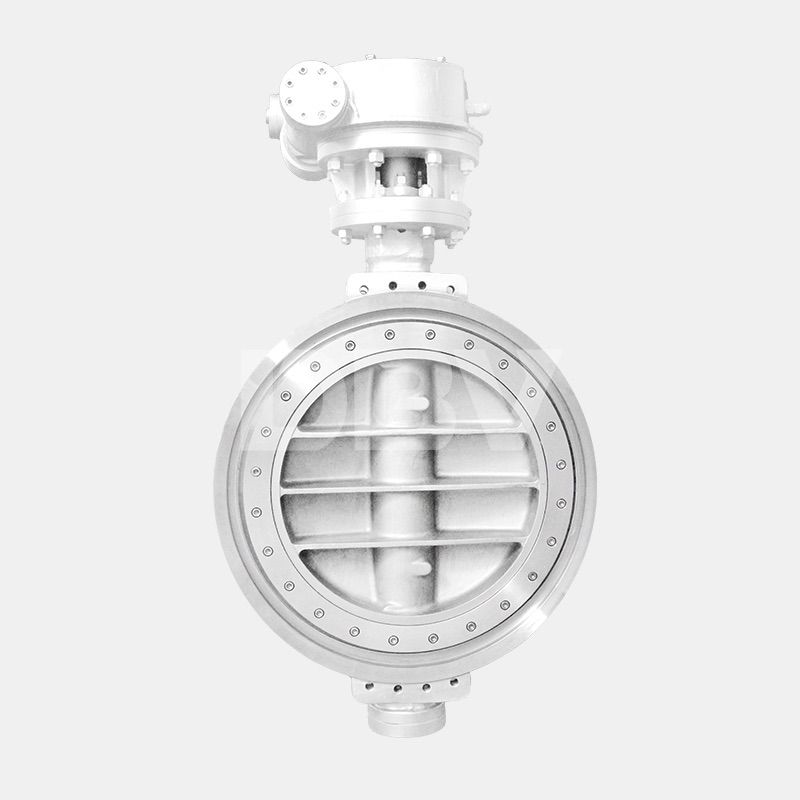

Worm Gear WCB ...

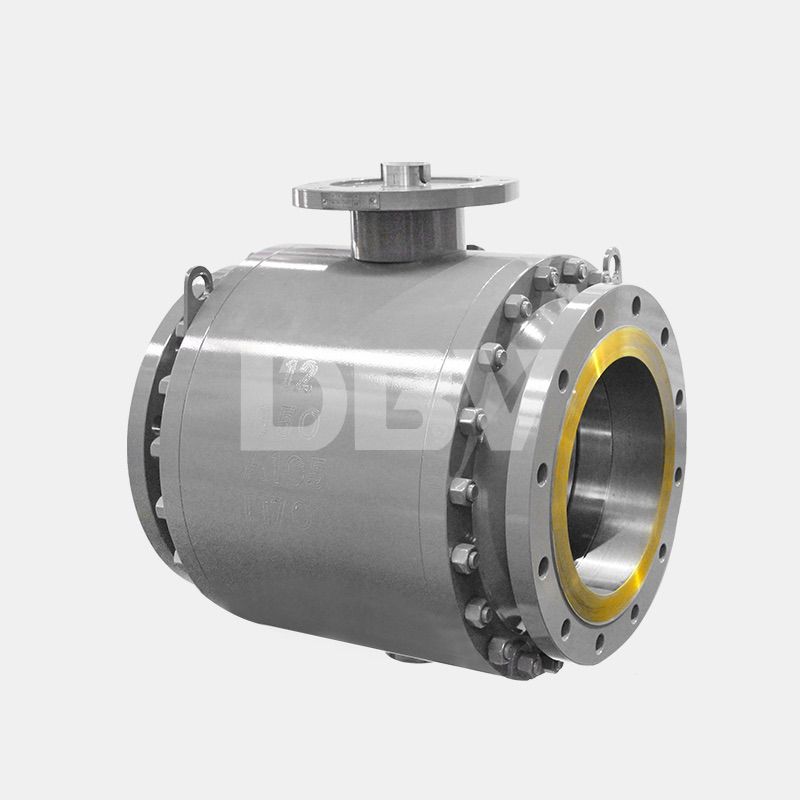

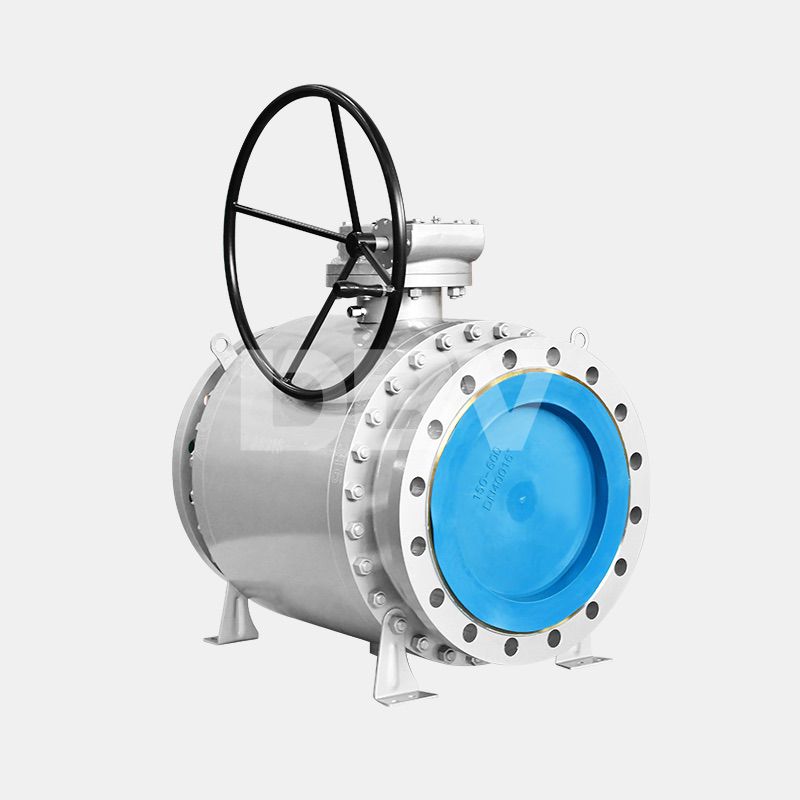

Trunnion mounted f...

Worm Gear PN10 ...

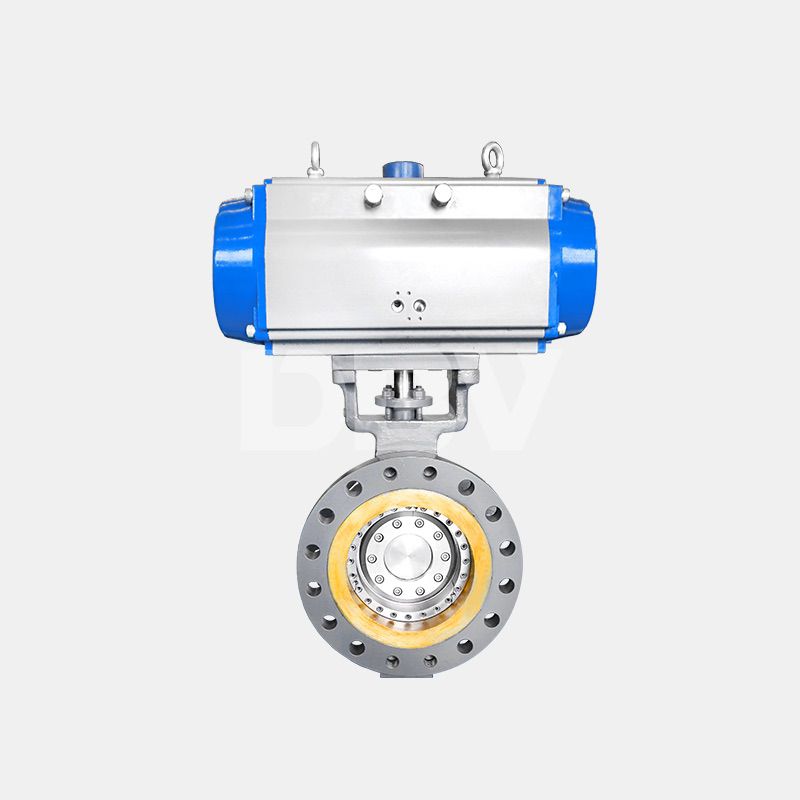

High pressure meta...

Metal to metal sea...

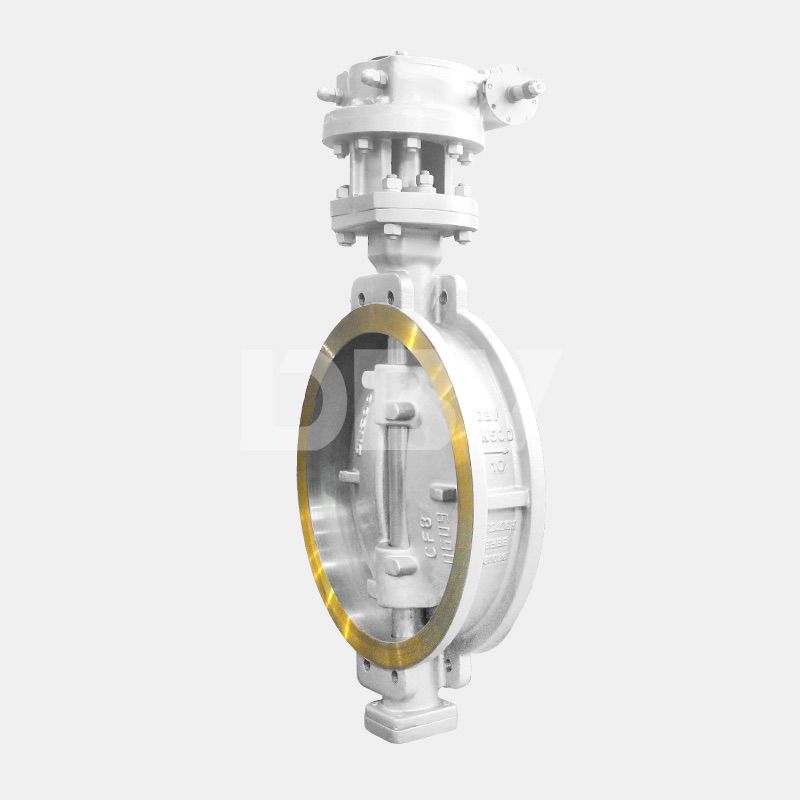

Worm gear WCB D...
